Our systems.

Optical inspection (AOI)

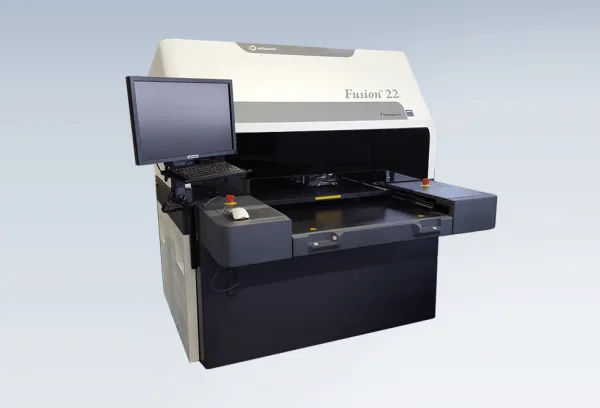

Orbotech Fusion 22 AOI

• Signal, mixed, buildup, power & ground, and cross shielding inner layers
• Mixed, Signal, Cross shielding, buildup outer layers
• True detection accuracy (low likeliness of false alarms)
• Conventional, flex, advanced build-up board, and photoresist materials

Inkjet legend printers

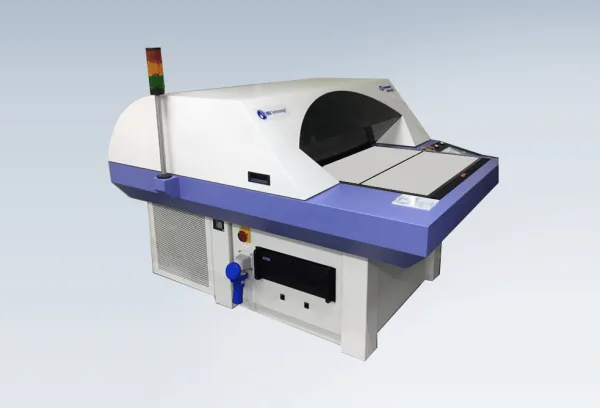

Orbotech Sprint 8 Inkjet Legend Printer

• Raster Image Processor software
• Quick setup, registration and scaling
• Reduced cycle time due to eliminated processes
• Print side A-A or A-B

Inkjet legend printers

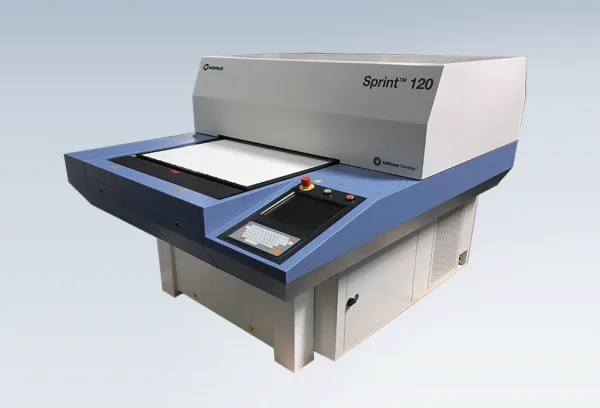

Orbotech Sprint 120 Inkjet Legend Printer

• Dotstream technology
• Integrated air scrubber
• No need for screen mask preparation
• Full ink coverage in one pass

Optical inspection (AOI)

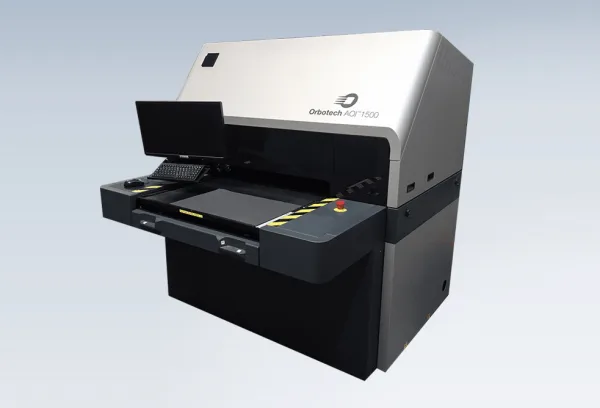

Orbotech 1500 AOI

Contact us for specifications and availability.

Laser photoplotters

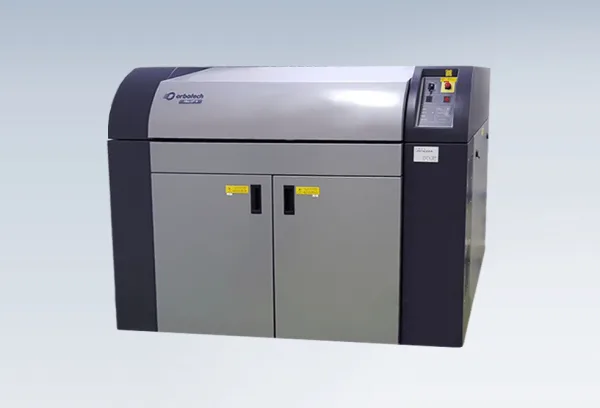

Orbotech LP9 Photoplotter

• Super fast 120-beam laser tech
• Raster image processor
• Resolutions up to 0.5μm
• 25 film sizes (largest is 28″ x 32″)

Laser photoplotters

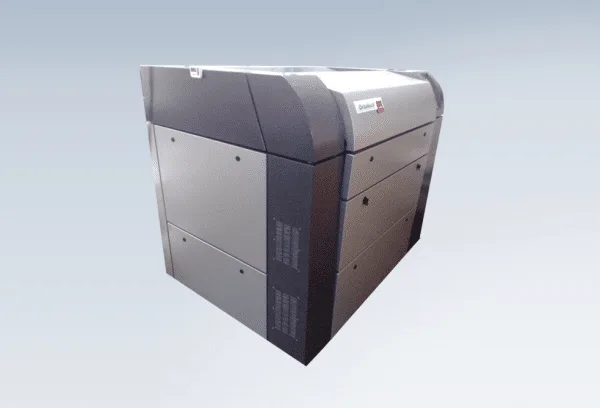

Orbotech LP9008 Photoplotter

• Sun Blade 150
• .7mil geo accuracy
• 3-18 inch/min plotting speed
• 14×11″ – 26×32″ film size

Laser photoplotters

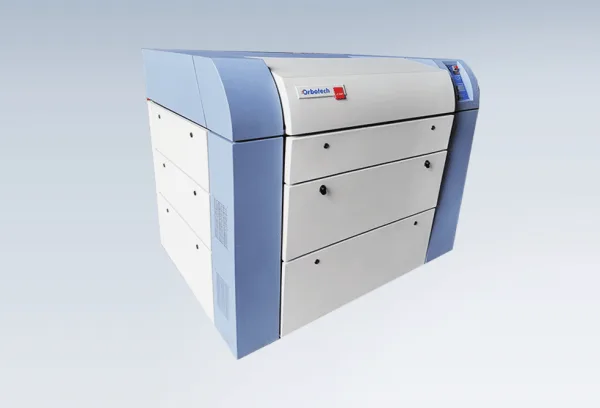

Orbotech LP7008 Photoplotter

• 48 beam laser tech
• 3 film sizes available
• .75 mil and 15um lines
• 1/16th mil and 1.25um resolutions

Laser photoplotters

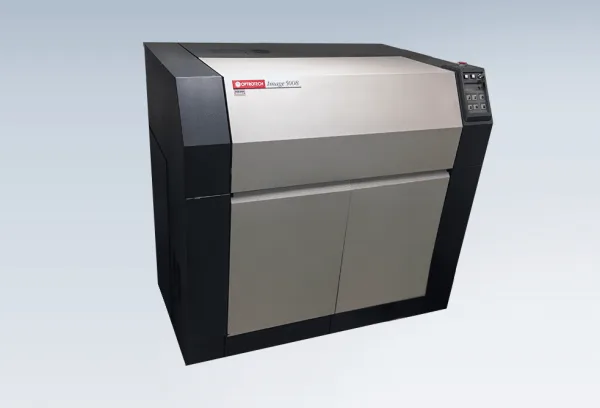

Orbotech LP5008 LP5008X Photoplotter

• 32 beam laser
• Fully Automated
• Multi-user, Multi-queuing
• 37″ x 34″ image size

Optical inspection (AOI)

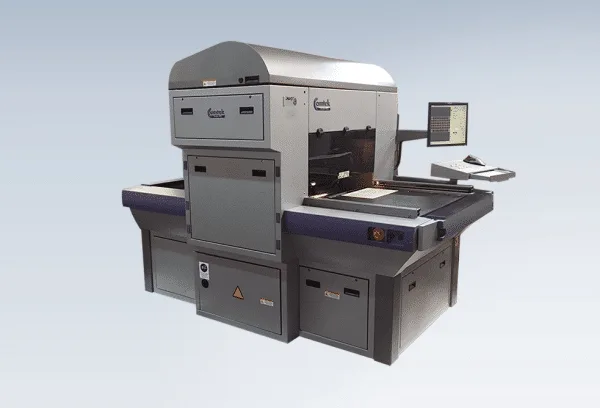

Camtek Dragon Series AOI

• HD2, Flex

Optical inspection (AOI)

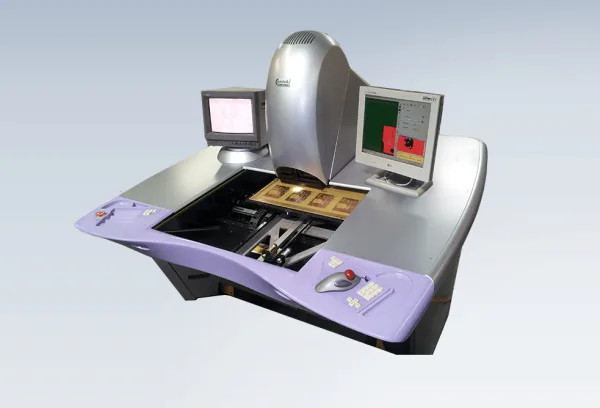

Camtek Orion Series AOI

• 808, 828, 868 Elite, PX

Optical inspection (AOI)

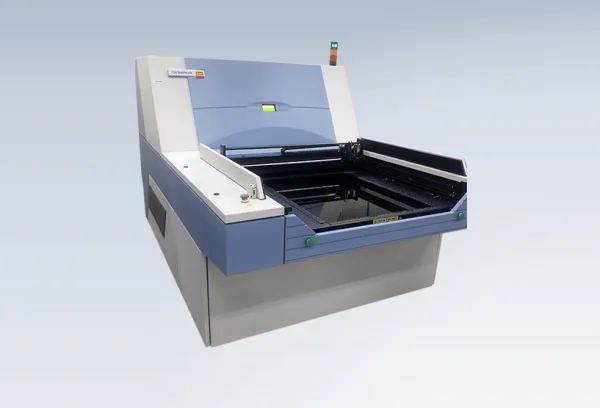

Orbotech Power Vision AOI

Contact us for specifications and availability.

Optical inspection (AOI)

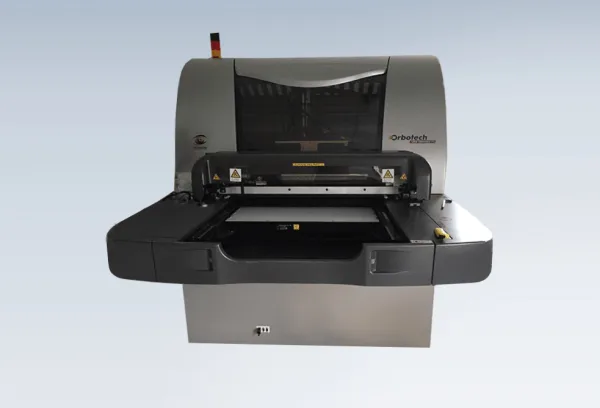

Orbotech Discovery AOI

Contact us for specifications and availability.

Optical inspection (AOI)

Orbotech 309 AOI

Contact us for specifications and availability.

Laser direct imaging

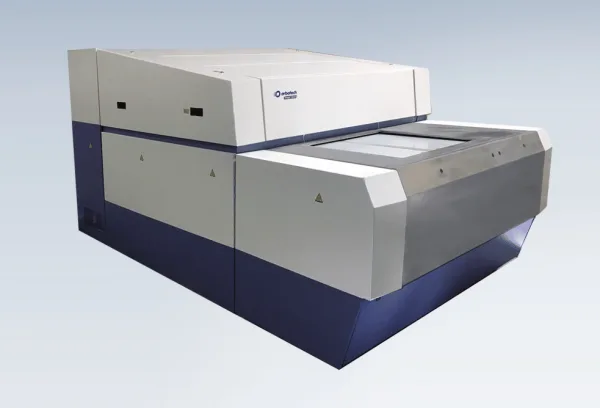

Orbotech Paragon Xpress 50 LDI Solution

• Registration accuracy ±10μm
• Innovative scaling
• ±300μm Depth of focus
• Rigid-flex Single Scan for entire panel

Laser direct imaging

Orbotech Paragon Xpress 9 LDI Solution

• Registration accuracy ±10μm
• Innovative scaling
• ±300μm Depth of focus
• Rigid-flex Single Scan for entire panel

Laser direct imaging

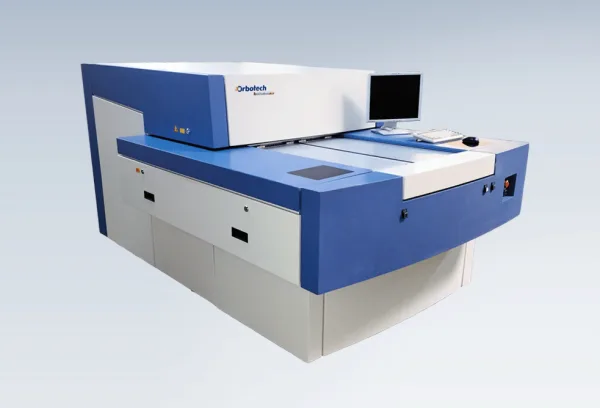

Orbotech Paragon 9800 LDI Solution

• No mask which minimizes time and complexity
• Registration accuracy of 20μm for inner layers
• ±10μm annular ring accuracy
• Individual panel scaling to factor in distortion

Laser direct imaging

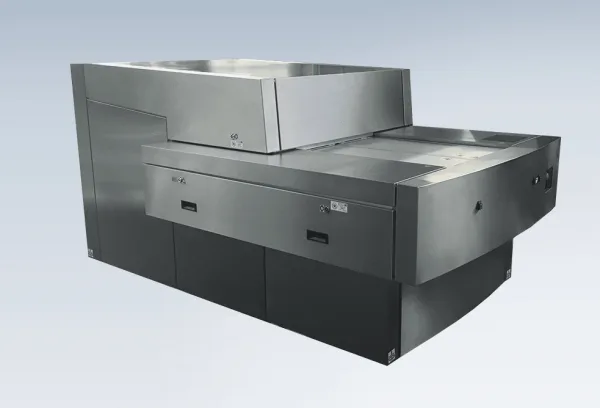

Orbotech Paragon 9000 LDI Solution

• 8W

Laser direct imaging

Orbotech Paragon 8800 LDI Solution

• No mask which minimizes time and complexity
• Registration accuracy of 20μm for inner layers
• ±10μm annular ring accuracy
• Individual panel scaling to factor in distortion

Laser direct imaging

Orbotech Paragon 8000 LDI Solution

• No mask which minimizes time and complexity
• Registration accuracy of 20μm for inner layers
• ±10μm annular ring accuracy
• Individual panel scaling to factor in distortion
